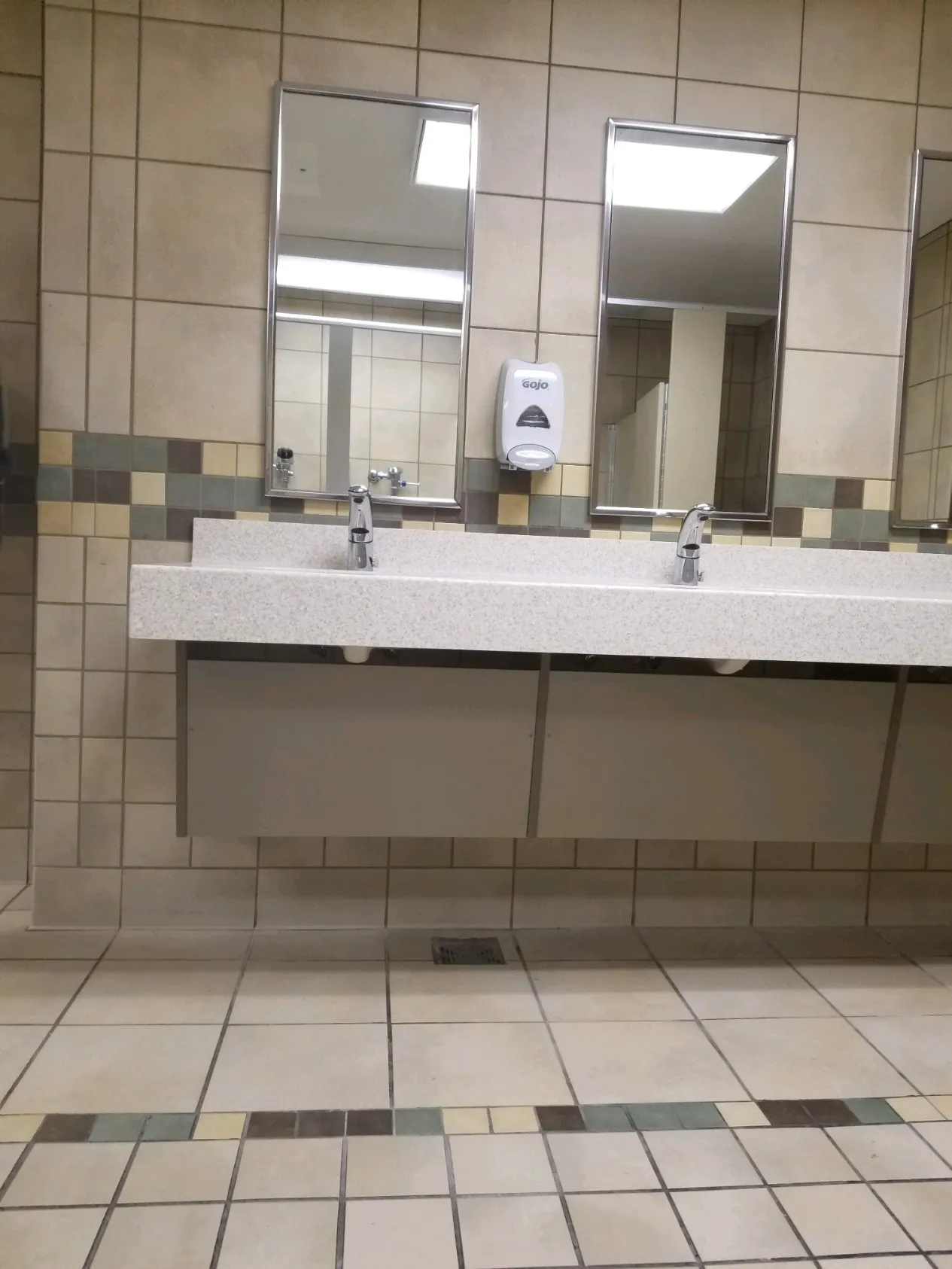

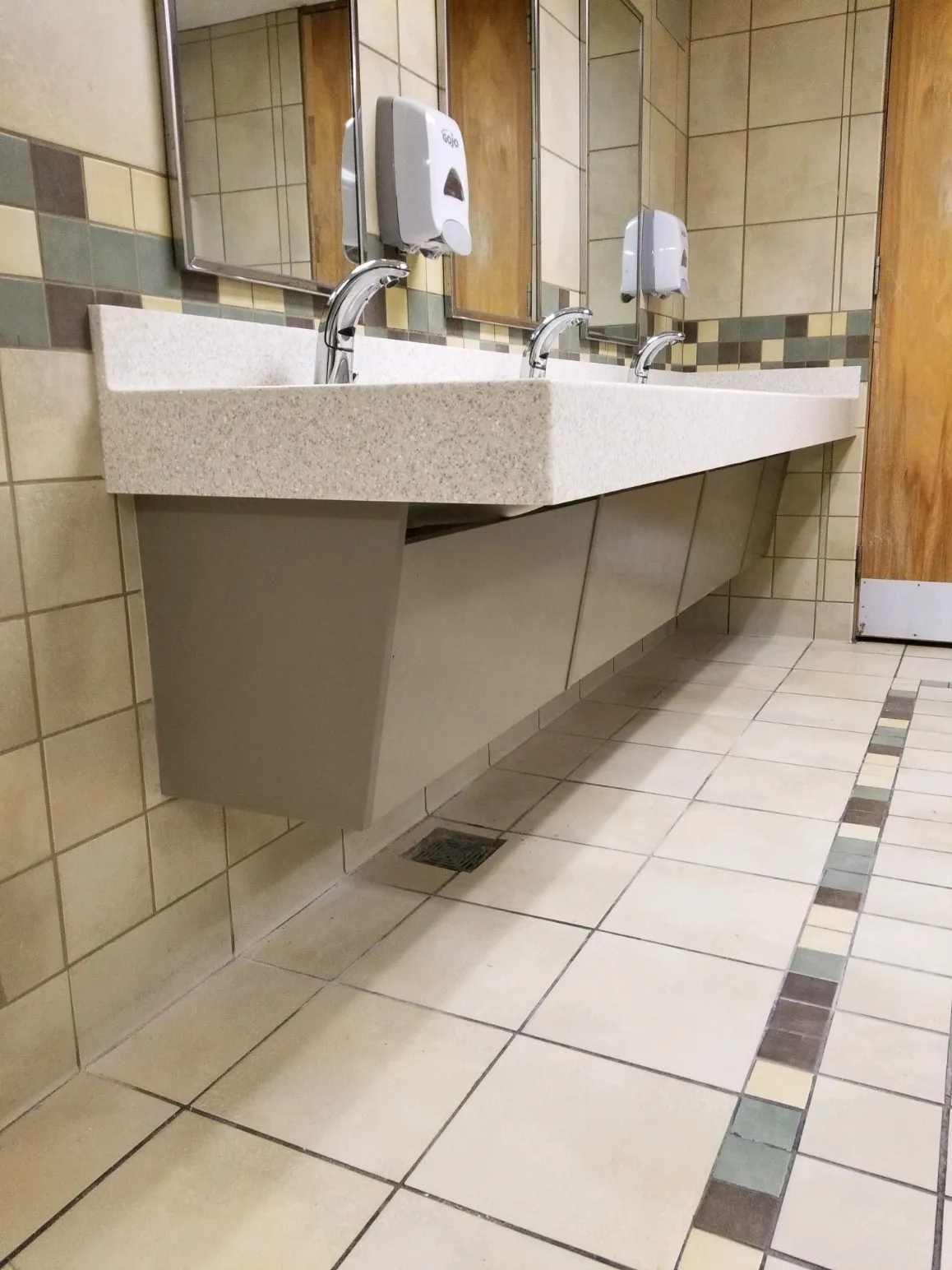

EZ Frame ADA Vanity
DeSavino & Sons designs, manufactures and supplies ADA vanity systems that meet or exceed the Americans with Disabilities Act guidelines and national and state building codes for accessibility in public facilities.
It's easy
- To specify
- To order in standard sizes or custom configurations
- To flat pack and ship anywhere in the world
- To assemble by general trades, millworkers or plumbers
- To keep sanitary
Construction: countertop
- Solid surface
- Quartz surfacing
- Granite
Construction: frame
- Anodized aluminum alloy
- Leg supports and plumbing screens to match any decor: laminate, HDPE (high-density polyethylene) or solid surface
ADA-compliant vanity system
- Allows ultimate flexibility
- Provides easy access to plumbing
- Complete vanity support system for applications facility-wide
- Modular design lets you change layout or location
- Saves time: less time and fewer resources for assembly
- Can be specified as a complete system
- Ideal for renovation or new construction
- Easy-to-install system includes all support members and internal structures
- Installs as a single unit or in multiple-lavatory configurations
Saves project cost
- By reducing installed costs
- By using economical yet durable materials
- By eliminating multiple-source construction
- By selling directly to all commercial segments
Offers luxury and value
- Solid surface, granite or quartz countertops
- Functional beauty and a classic warm touch
- Access for future plumbing repairs
- Shorter turnaround times
Key features
- Wall-mounted, so the floor below stays open, easy to clean and clear for ADA lavatory knee space
- Horizontal frame of extruded aluminum with a clear anodized finish
- Frame, side panel and intermediate bracket together resist 85 lb per sq ft with no more than 1/8" deflection
- Side panels and brackets in HDPE, plastic laminate over moisture-resistant MDF, or solid surface (Avonite, Corian® or HI-MACS®)
- Plumbing screens match the side panels and push on or pull off, with tamper-resistant fasteners or lock and key available
- Open below, or fitted with a shelf or a security closure
- Tops in solid surface, quartz or granite, with an eased or round-over edge
Options to choose
- Panel material: HDPE, plastic laminate or solid surface
- HDPE colors: Dolphin Grey, Glacier Grey, Sandshade, Seafoam or White-White, or matched to your toilet partitions
- Front: matching plumbing screen, with tamper-resistant fasteners or keyed-alike locks
- Bottom: none, a shelf rated for 25 lb per linear foot, or a security closure
- Countertop: solid surface, quartz or granite, with optional backsplash
For architects and specifiers
The EZ Frame guide specification is written as CSI Section 12 35 00, Wall-Mounted Vanities and Counters. Download it below in Word format and edit it to suit your project.
Submittals include a product data sheet, engineering test report, installation instructions, shop drawings showing sizes, materials and colors, and panel and countertop samples. The wall needs blocking or reinforcement to carry a fully loaded vanity.
For technical help, call (570) 383-3988 or email contact@desavino.com.
Feature and benefit
- Reduced installed costs: cost savings
- Economical yet durable materials: value for money
- Single-source construction: a simpler process
- Direct sales to all commercial segments: direct access
- Shorter turnaround: faster project completion
Support legs and plumbing screens
Available in HDPE colors in matte, textured and woodgrain finishes.
Wrought Iron
Nugget
Indigo
Black
Chestnut
Moss Grey
Glacier Grey
Summit Sage
White
Dolphin Grey
Sedona
Dark Ash
Stainless Steel Hammered
Nickel Rotary Brushed
Stainless Steel Rotary Brushed
Olyphant Oak
Susquehanna Grey
Elm
Northeastern Walnut
Teak
Ironwood
Downloads
Common questions
What is the EZ Frame made of?
The horizontal frame is extruded aluminum with a clear anodized finish. Side panels, brackets and plumbing screens come in HDPE, plastic laminate or solid surface.
How much weight can an EZ Frame vanity hold?
The assembled frame, side panel and intermediate bracket resist 85 pounds per square foot with no more than 1/8 inch of deflection.
Can the panels match our toilet partitions?
Yes. HDPE and laminate panels can be specified to match the toilet partitions or the room finish schedule.
Does the wall need blocking?
Yes. The wall needs blocking or reinforcement to resist the loads of a fully loaded vanity. Check this before installation.
Can it ship flat and be assembled on site?
Yes. EZ Frame flat packs for shipping and can be assembled by general trades, millworkers or plumbers.
Does choosing an ADA vanity make the whole restroom compliant?
No. The final layout also needs the required approach space, clearances, controls and other accessible elements. Have the project team review the complete installation.
